商品の詳細:
|
| パネル モデル: | LTA057A344F | パネルのブランド: | 東芝 |
|---|---|---|---|
| 解決: | 320×240 | 作用面積: | 115.2×86.4 mm |
| 輪郭: | 144×104.6×10 mm | コントラスト比: | 500:1 （Typ。） |
| ハイライト: | industrial touch screen display,industrial lcd screen |
||

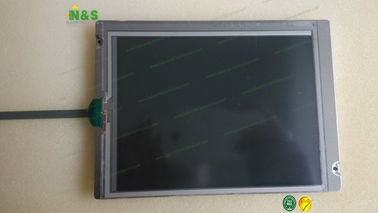

Normally White Toshiba LTA057A344F TFT-LCD Module 5.7 inch 320×240 Active Area 115.2×86.4 mm Contrast Ratio 500:1 (Typ.)
LTA057A344F Basic Information
| Panel Model | LTA057A344F |
| Panel Brand | Toshiba Matsushita |
| Descrition | a-Si TFT-LCD ,5.7 inch, 320×240 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
LTA057A344F Mechanical Features
| Dot Resolution | 320(RGB)×240 (QVGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 70 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.120×0.360 mm (H×V) |
| Pixel Pitch | 0.360×0.360 mm (H×V) |
| Active Area | 115.2×86.4 mm (H×V) |
| Bezel Area | 119.0×90.2 mm (H×V) |
| Outline Dimension | 144×104.6 mm (H×V) |
| Outline Depth | 9.5±0.5 mm |
| Holes & Brackets | Side mounting holes (4-Φ1.6); Rear mounting Pole (4-Φ2.6); Face mounting holes (2 pcs) |
| Landscape or Portrait | Landscape type |
| Touch Panel | Embeded (4-wire Resistive) |
LTA057A344F Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 320 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Response Time | 50/50 (Max.)(Tr/Td) |
| Viewing Angle | 70/70/60/60 (Typ.)(CR≥10) (L/R/U/D) |
| Sunlight Readable | N |
Our Advantage :
>>Quality Guarantee:
Our LCD Panels are 100% original and brand new!
Warranty : 12 months
You can enjoy the real panels directly from the LCD panel brand distributor.
>>Packing Guarantee:
All the products are in original package from original factory directly, and all the LCD panel packages with labels and serial number!
>>Delivery Guarantee:
We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you!
>>After-Sale service
We have many years good experience on display solution.
Any question, we will reply you within 12 hours.
LTA057A344F Backlight System
| Lamp Position | Edge light type |
| Lamp Type | WLED |
| Lamp Amount | 6S3P |
| Lamp Shape | 3 strings |
| Lamp Life Time | 20K(Typ.) (Hours) |
| Lamp Replaceable | Replaceable |
| Lamp Voltage | 19.2V (Typ.) |
| Lamp Current | 15/25mA (Typ./Max.) |
| Interface Type | Connector |
| Lamp Driver Board | No |
Warranty:
1. All panels’ grade is promised strictly same as original factory’s standard.
2. All brand-new Panels’ electronic functions are guarranted during warranty period of 1 year beginning with the invoice date.
3. We own 6-Year experience in the Medical LCD display, Aerospace LCD screen, Gaming LCD replacements, Military LCD screen, Kiosk LCD Display, Transportation LCD, industrial LCD panel and more.
4. ISO 9001 guarantee.
