商品の詳細:
|
| パネルのサイズ: | 15.6 インチ | 解決: | 1366×768 |
|---|---|---|---|
| 表面に: | 防眩 | コントラスト比: | 500:1 （Typ。） |
| 周波数: | 60 hz | ||
| ハイライト: | industrial lcd screen,industrial lcd panel |
||

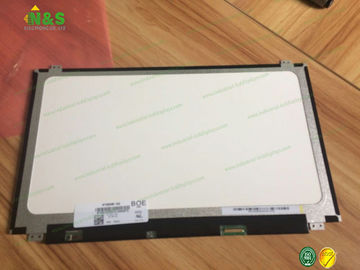

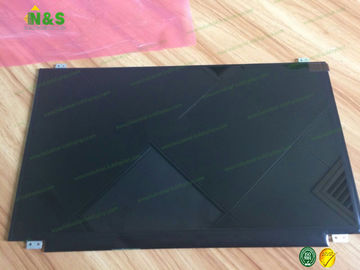

NT156WHM-N42 BOE Surface Antiglare 15.6 inch, 1366×768 tft lcd module Outline 359.5×223.8×3.2 mm
NT156WHM-N42 Basic Information
| Panel Model | NT156WHM-N42 |
| Panel Brand | BOE |
| Descrition | a-Si TFT-LCD ,15.6 inch, 1366×768 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
NT156WHM-N42 Mechanical Features
| Dot Resolution | 1366(RGB)×768 (WXGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 100 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.084×0.252 mm (H×V) |
| Pixel Pitch | 0.252×0.252 mm (H×V) |
| Weight | 370g (Max.) |
| Surface | Antiglare |
| Active Area | 344.232×193.536 mm (H×V) |
| Outline Dimension | 359.5×223.8 mm (H×V) |
| Outline Depth | 3.2 (Max.) mm |
| Shape Style | Slim (PCBA Flat, Depth ≤3.2mm) |
| Holes & Brackets | Face mounting holes (8 pcs) on up, down slugs |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
NT156WHM-N42 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 220 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Color Gamut | 45% NTSC (CIE1931) |
| Response Time | 12 (Typ.)(Tr+Td) |
| Viewing Angle | 45/45/20/40 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.25/1.54 (Max.)(5/13 points) |
| Sunlight Readable | N |
FAQ
1. Q: Where can I get the price?
A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
3. Q: What about the lead time for mass production?
A: It depends on your order quantity and the season you place the order.
4. Q: What are your terms of payment?
A: We accept T/T, Western Union, MoneyGram, PayPal.
After-sale service:
1.Our products have two years warranty service ,lifetime free maintenance and upgrade.
2.Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3.We offered training to our customer who includes operating and maintenance of our products.
4.In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees.
5.Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6.If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| TT101WSQ-N10 | BOE | 10.1" | 1024×600 |
| MV238FHB-N20 | BOE | 23.8" | 1920×1080 |
| MT185WHB-N10 | BOE | 18.5" | 1366×768 |
| BV045WVE-N40 | BOE | 4.5" | 480×800 |
| MV315QHB-N10 | BOE | 31.5" | 2560×1440 |
| AV080WSB-NW0 | BOE | 8.0" | 1024×600 |
| AV080WVB-NW1 | BOE | 8.0" | 800×480 |
| AT101WSB-NW0-3800(3900) | BOE | 10.1" | 1024×600 |
| TT090WSQ-N10 | BOE | 9.0" | 1024×600 |
| MV270QHB-N10 | BOE | 27.0" | 2560×1440 |
| MV215FHB-N40 | BOE | 21.5" | 1920×1080 |
Pls contact to us for more stock information
