商品の詳細:
|
| パネルのサイズ: | 15.6 インチ | パネルの種類: | Si TFT-LCD |
|---|---|---|---|
| 作用面積: | 334.16×193.59 mm | 輪郭: | 359.5×223.8×3.2 mm |
| 表面に: | 防眩 | 周波数: | 60 hz |
| ハイライト: | industrial lcd screen,industrial lcd panel |
||

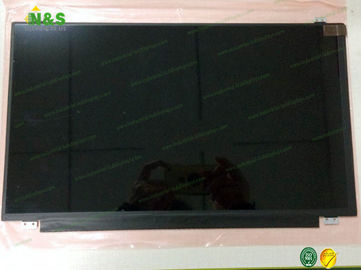

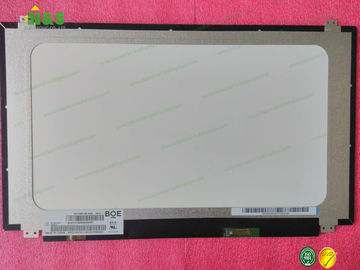

Resolution 1920×1080NV156FHM-N42 BOE 15.6 inch with 334.16×193.59 mm Active Area Outline 359.5×223.8×3.2 mm
NV156FHM-N42 Basic Information
| Panel Model | NV156FHM-N42 |
| Panel Brand | BOE |
| Descrition | a-Si TFT-LCD ,15.6 inch, 1920×1080 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
NV156FHM-N42 Mechanical Features
| Dot Resolution | 1920(RGB)×1080 (FHD) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 144 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.05975×0.17925 mm (H×V) |
| Pixel Pitch | 0.17925×0.17925 mm (H×V) |
| Weight | 380g (Max.) |
| Surface | Antiglare |
| Active Area | 334.16×193.59 mm (H×V) |
| Outline Dimension | 359.5×223.8 mm (H×V) |
| Outline Depth | 3.2 (Max.) mm |
| Shape Style | Slim (PCBA Flat, Depth ≤3.2mm) |
| Holes & Brackets | Face mounting holes (8 pcs) on up, down slugs |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Our advantages in the LCD Screen market:
1.Better price
2.Fast delivery
3.Top quality
4.First class after - sales service
5.No memory effect
6.Sourcing lines & Distributors for the EOL LCD.
The reasons you choose us
1).More competitive price! As a professional LCD Distributor, we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the hard-to-find LCD panels.
2).Great quality! All LCD Screen we sent are with good quality guarantee, 100% quality check and full one year warranty!
3).Fast delievery! Delivery time will be faster than others.
4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!
5).Best sale-service! Professional team to service with you before sale, on sale & after service.
NV156FHM-N42 Optical Features
| Display Mode | ADS, Normally Black, Transmissive |
| Brightness | 250 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Color Gamut | 47% NTSC (CIE1931) |
| Response Time | 30 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.25/1.54 (Max.)(5/13 points) |
| Sunlight Readable | N |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| BP070WS7-500 | BOE | 7.0" | 1024×600 |
| TV070WVE-N10 | BOE | 7.0" | 800×480 |
| BV050HDE-N40 | BOE | 5.0" | 720×1280 |
| BV050HDS-T40 | BOE | 5.0" | 720×1280 |
| BF039WVE-500 | BOE | 3.9" | 480×800 |
| BF050WVE-400 | BOE | 5.0" | 480×854 |
| BV047HDE-N40 | BOE | 4.7" | 720×1280 |
| BF050FHME101 | BOE | 5.0" | 1080×1920 |
| BS055FHG-N41-6900 | BOE | 5.5" | 1080×1920 |
| BF039WVE-800 | BOE | 3.9" | 480×800 |
