商品の詳細:
|
| パネルの種類: | Si TFT-LCD | パネルのサイズ: | 13.3 インチ |
|---|---|---|---|
| 解決: | 1366×768 | コントラスト比: | 500:1 （Typ。） |
| 周波数: | 60 hz | ||
| ハイライト: | industrial lcd screen,industrial lcd panel |
||

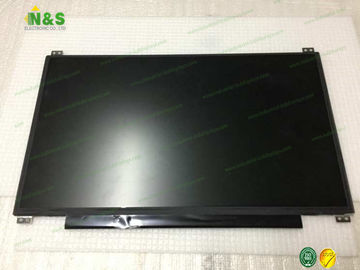

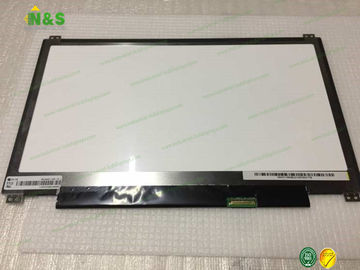

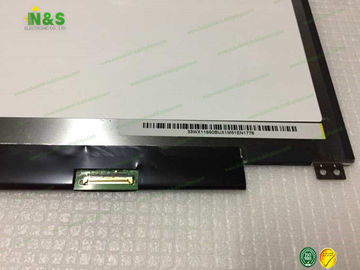

BOE HB133WX1-402 1366×768 resolution Industrial LCD Displays with 293.42×164.97 mm Active Area
HB133WX1-402 Basic Information
| Panel Model | HB133WX1-402 |
| Panel Brand | BOE |
| Descrition | a-Si TFT-LCD ,13.3 inch, 1366×768 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
HB133WX1-402 Mechanical Features
| Dot Resolution | 1366(RGB)×768 (WXGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 118 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0716×0.2148 mm (H×V) |
| Pixel Pitch | 0.2148×0.2148 mm (H×V) |
| Weight | 270g (Max.) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 293.42×164.97 mm (H×V) |
| Outline Dimension | 306.72×189.2 mm (H×V) |
| Outline Depth | 3.0 (Max.) mm |
| Shape Style | Slim (PCBA Flat, Depth ≤3.2mm) |
| Holes & Brackets | Face mounting holes (8 pcs) on up, down slugs |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
HB133WX1-402 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 200 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Color Gamut | 45% NTSC (CIE1931) |
| Response Time | 12 (Typ.)(Tr+Td) |
| Viewing Angle | 45/45/20/40 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.25/1.60 (Max.)(5/13 points) |
| Sunlight Readable | N |
What’s our advantage compared with other suppliers?
(1). Before shipment, we will test every LCD Screen and ensure the quality.
(2). we provide high quality lcd panels for customers all over the world.
(3) .We have DBS, ISO9001 Certifications for our Panels.
(4) .Excellent service on before-sale, on-sale and after-sale.
Guarantee:
(1) All items will be strictly tested and shipped with safe & professional package.
(2) We have 2~6months warranty for every LCD screen panels, depend on the different LCD panel models.
(3) We will do our best to solve any possible problem for your after sale. Please contact to us.
HB133WX1-402 Electronics Feature
| Vertical Frequency | 60Hz |
| Reverse Scan | No |
| Total Power Consumption | 2.75/3.0W (Typ./Max.) |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| HV236WHB-N00 | BOE | 23.6" | 1366×768 |
| BV015Z2E-NB0 | BOE | 1.54" | 320×320 |
| BV015Z1E-NB0 | BOE | 1.54" | 240×240 |
| BP070WS1-600 | BOE | 7.0" | 1024×600 |
| HV480WU2-302 | BOE | 48" | 1920×1080 |
| HV480WU2-301 | BOE | 48" | 1920×1080 |
| 1.22 240RGB204 | BOE | 1.2" | 240×204 |
| BT040WVG-N60 | BOE | 4.0" | 480×800 |
| BS050HDG-N40-6C00 | BOE | 5.0" | 720×1280 |
| TT070WSB-NW1 | BOE | 7.0" | 1024×600 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
