商品の詳細:
|
| パネルのブランド: | CMEL | パネルのサイズ: | 2.8 インチ |
|---|---|---|---|
| 解決: | 240×320 | 輪郭: | 49.1×67.3 mm |
| 作用面積: | 43.2×57.6 mm | ||
| ハイライト: | industrial touch screen display,industrial lcd screen |
||

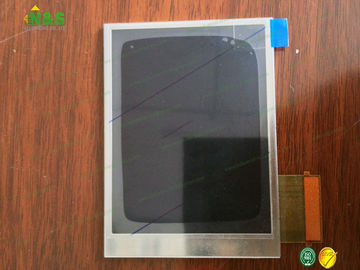

C0283QGLD-T 2.8 inch Industrial LCD Displays Active Area 43.2×57.6 mm Outline 49.1×67.3 mm new and original in stock
C0283QGLD-T Basic Information
| Panel Model | C0283QGLD-T |
| Panel Brand | CMEL |
| Descrition | AM-OLED ,2.8 inch, 240×320 |
| Panel Type | AM-OLED |
| Operating Temperature | -20 ~ 60 °C |
| Storage Temperature | -40 ~ 80 °C |
C0283QGLD-T Mechanical Features
| Dot Resolution | 240(RGB)×320 (QVGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 141 PPI |
| Aspect Ratio | 3:4 (H:V) |
| Form Factor | Flat Rectangle Display |
| Pixel Pitch | 0.180×0.180 mm (H×V) |
| Weight | 16g (Typ.) |
| Active Area | 43.2×57.6 mm (H×V) |
| Bezel Area | 44.4×58.8 mm (H×V) |
| Outline Dimension | 49.1×67.3 mm (H×V) |
| Outline Depth | 1.75/1.9 (Typ./Max.) mm |
| Landscape or Portrait | Portrait type |
| Touch Panel | Without |
C0283QGLD-T Optical Features
| Brightness | 200 cd/m² (Typ.) |
| Contrast Ratio | 10000 : 1 (Typ.) (Transmissive) |
| Display Color | 65K/262K () |
| Color Gamut | 73% NTSC (CIE1931) |
| Response Time | 0.05/0.05 (Max.)(Tr/Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR＞10) (L/R/U/D) |
| White color Chromaticity | Wx:0.310; Wy:0.330 |
| Sunlight Readable | N |
FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.
Packaging & Delivery
Packaging Details:
Safey package
Plastic trays inside
2 layes of cartons
Fragile sign on top
Can be customize 3.5 inch spare parts auo used lcd panel
Delivery Detail: 1-3 Working Days
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
