商品の詳細:
|
| パネルの種類: | Si TFT-LCD | パネルのサイズ: | 12.1 インチ |
|---|---|---|---|
| 解決: | 800×600 | 作用面積: | 246×184.5 mm |
| コントラスト比: | 500:1 （Typ。） | 表示色: | 262K （6 ビット） |
| 周波数: | 60 hz | ||
| ハイライト: | industrial touch screen display,industrial lcd screen |
||

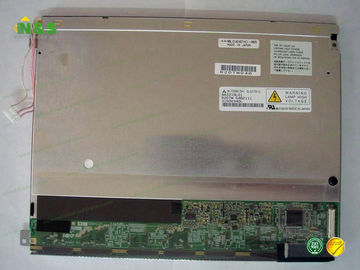

Normally White AA121SL01 12.1 inch 800×600 Active Area 246×184.5 mm Surface Antiglare, Hard coating (3H)
AA121SL01 Basic Information
| Panel Model | AA121SL01 |
| Panel Brand | Mitsubishi |
| Descrition | a-Si TFT-LCD ,12.1 inch, 800×600 |
| Panel Type | a-Si TFT-LCD |
| Model Alias | T-51512D121J-FW-A-AB |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -20 ~ 70 °C |
AA121SL01 Mechanical Features
| Dot Resolution | 800(RGB)×600 (SVGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 82 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.1025×0.3075 mm (H×V) |
| Pixel Pitch | 0.3075×0.3075 mm (H×V) |
| Weight | 740g (Typ.) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 246×184.5 mm (H×V) |
| Bezel Area | 249.0×187.5 mm (H×V) |
| Outline Dimension | 280×210 mm (H×V) |
| Outline Depth | 12.0 (Typ.) mm |
| Holes & Brackets | Face mounting holes (4-Φ3.5) on left bezel, right slugs |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
AA121SL01 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 400 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Response Time | 20/30 (Typ.)(Tr/Td) |
| Viewing Angle | 65/65/45/75 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.332; Wy:0.367 |
| White Variation | 1.30 (Max.)(5 points) |
| Sunlight Readable | N |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| CLAG045LA011 AXA | CPT | 4.5" | 480×854 |
| LC550EGY-SHM1 | LG Display | 55" | 3840×2160 |
| LC550EQK-FGK3 | LG Display | 55" | 3840×2160 |
| H466TAN01.2 | AUO | 4.7" | 720×1280 |
| C050SWZ3-1 | IVO | 5.0" | 540×960 |
| C017SN81-0 | IVO | 1.8" | 128×160 |
| N080ICE-GB1 CELL | Innolux | 8.0" | 800×1280 |
| CLAF055LA41 TXX | CPT | 5.5" | 540×960 |
| V650DJ4-QS5 | Innolux | 65" | 3840×2160 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
Our Service
1. Quality ensurance
100% original new and A grade,
You can enjoy the real panels directly from original factory;
2. Fast reply:
Our well-developed management system enables us to reply any kind of customers' inquiry in 24 hours.
3. Delivery ensurance:
Large Stock System, We have our own warehouses in Shenzhen and HongKong, with comprehensive supply lines.
4. After-Sale Service:
Professional support team to provide effective service, we are young and full of passion!
5. Professional acknowledgement of lcd panels industry to provide customers with effective advise.
We have been in original lcd panels industry for more than 6 years and know the main brands' lcd panel price system very well. What's more, we have our own engineer team to provide our customers guideline for choosing panels for their new projects.
6. Competitive quotation:
We are insistent in lcd panel industry. Our big customers network ensures us to provide large orders regularly for these original factories. What's more, our financial strength enables us to absorb large stock. All these make our price more and more competitive.
Packing & Delivery for our LCD Screen Panel Replacements
1. Anti-static Bag Packing.
2. Anti-Shock Bubble Bag Packing
3. Foam and Hard Carton Packing
4. Picked up by forward and delivered by express services.
