商品の詳細:
|
| パネルのサイズ: | 10.4 インチ | 解決: | 800×600 |
|---|---|---|---|
| 輪郭: | 242×185 mm | コントラスト比: | 400:1 （Typ。） |
| 表示色: | 262K （6 ビット） | ||
| ハイライト: | industrial lcd screen,industrial lcd panel |
||

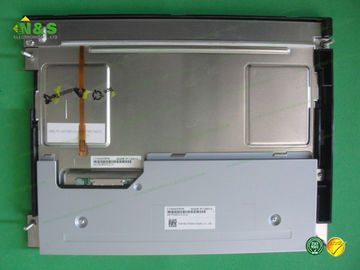

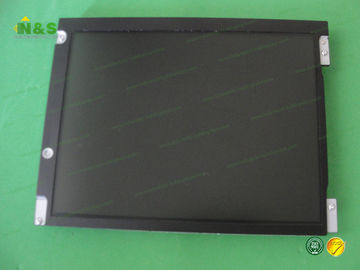

Normally White LT104AD18F00 Toshiba 10.4 inch with 211.2×158.4 mm Active Area Display Colors 262K (6-bit)
LT104AD18F00 Basic Information
| Panel Model | LT104AD18F00 |
| Panel Brand | Toshiba |
| Descrition | LTPS TFT-LCD ,10.4 inch, 800×600 |
| Panel Type | LTPS TFT-LCD |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
| Remarks | Mounting compatible with LTA104D182F series. |
LT104AD18F00 Mechanical Features
| Dot Resolution | 800(RGB)×600 (SVGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 96 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.088×0.264 mm (H×V) |
| Pixel Pitch | 0.264×0.264 mm (H×V) |
| Weight | 600g (Typ.) |
| Active Area | 211.2×158.4 mm (H×V) |
| Outline Dimension | 242×185 mm (H×V) |
| Outline Depth | 13.4 (Typ.) mm |
| Holes & Brackets | Face mounting holes (4 pcs) |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
LT104AD18F00 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Contrast Ratio | 400 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Response Time | 8/17 (Typ.)(Tr/Td) |
| Viewing Angle | 60/60/50/50 (Typ.)(CR≥10) (L/R/U/D) |
| Sunlight Readable | N |
FAQ
Q1: What's price?
A1: We provide reasonable price and recommend suitable batteries to our customers.
Q2: What's delivery time?
A2: The delivery time is normally 1-3 working days after payment.
Q3: What's the payment?
A3: We accept T/T, Western Union, MoneyGram, Paypal
Q4: Can we visit your factory?
A4: Warmly welcome. Once we have your schedule, we will arrange
professional sales team to follow up your case.
Packaging & Delivery
Packaging Details:
Antistatic bag + Bubble bag + Foam box + Carton box
Delivery Detail:
1-3 working days after payment confirmed
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| LT141DEVEP00 | TOSHIBA | 14.1" | 1280×800 |
| LT121DEVCN00 | TOSHIBA | 12.1" | 1280×800 |
| LTM024DB40 | TOSHIBA | 2.4" | 240×320 |
| LTM022A97B | TOSHIBA | 2.2" | 240×320 |
| LT043MDQ6000 | TOSHIBA | 4.3" | 480×272 |
| TFD58W30MM | TOSHIBA | 5.8" | 400×234 |
| LT111EE06000 | TOSHIBA | 11.1" | 1366×768 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
LT104AD18F00 Signal Interface
| Signal Category | LVDS |
| Signal Class | LVDS (1 ch, 6-bit) |
| Input Voltage for Panel | 3.3V (Typ.) |
| Interface Type | Connector |
| Signal Interface | I-PEX - 20268-020E-12F, Pitch:1.0 mm, Pin:20 pins |
