商品の詳細:
|
| パネルの種類: | Si TFT-LCD | パネルのサイズ: | 8.9 インチ |
|---|---|---|---|
| 解決: | 1024×600 | コントラスト比: | 400:1 （Typ。） |
| 表示色: | 262K （6 ビット） | 入力電圧: | 3.3V （Typ。） |
| ハイライト: | industrial touch screen display,industrial lcd panel |
||

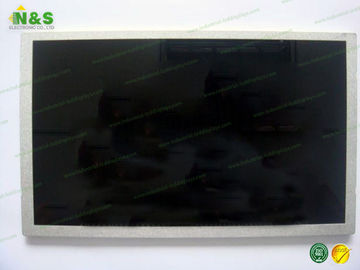

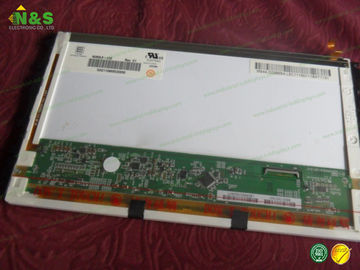

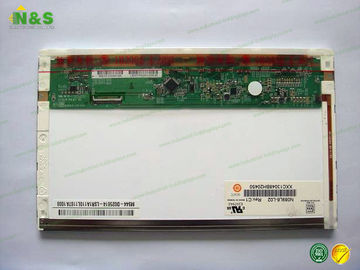

New and original 8.9 inch N089L6-L02 TFT LCD Module CMO with 195.072×113.4 mm Active Area Input Voltage 3.3V (Typ.)
N089L6-L02 Basic Information
| Panel Model | N089L6-L02 |
| Panel Brand | CMO |
| Descrition | a-Si TFT-LCD ,8.9 inch, 1024×600 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
N089L6-L02 Mechanical Features
| Dot Resolution | 1024(RGB)×600 (WSVGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 133 PPI |
| Aspect Ratio | 17:10 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0635×0.1890 mm (H×V) |
| Pixel Pitch | 0.1905×0.1890 mm (H×V) |
| Weight | 185/200g (Typ./Max.) |
| Surface | Glare (Haze 0%), Hard coating (3H) |
| Active Area | 195.072×113.4 mm (H×V) |
| Bezel Area | 198.27×116.6 mm (H×V) |
| Outline Dimension | 213.36×129.55 mm (H×V) |
| Outline Depth | 5.15/5.45 (Typ./Max.) mm |
| Holes & Brackets | Side mounting holes (4-M2) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
N089L6-L02 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 200 cd/m² (Typ.) |
| Contrast Ratio | 400 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Response Time | 3/7 (Typ.)(Tr/Td) |
| Viewing Angle | 45/45/20/45 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.25 (Max.)(5 points) |
| Sunlight Readable | N |
Our Advantage :
>>Quality Guarantee:
Our LCD Panels are 100% original and brand new!
Warranty : 12 months
You can enjoy the real panels directly from the LCD panel brand distributor.
>>Packing Guarantee:
All the products are in original package from original factory directly, and all the LCD panel packages with labels and serial number!
>>Delivery Guarantee:
We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you!
>>After-Sale service
We have many years good experience on display solution.
Any question, we will reply you within 12 hours.
Warranty:
1. All panels’ grade is promised strictly same as original factory’s standard.
2. All brand-new Panels’ electronic functions are guarranted during warranty period of 1 year beginning with the invoice date.
3. We own 6-Year experience in the Medical LCD display, Aerospace LCD screen, Gaming LCD replacements, Military LCD screen, Kiosk LCD Display, Transportation LCD, industrial LCD panel and more.
4. ISO 9001 guarantee.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| H426TAN02.0 | AUO | 4.3" | 720×1280 |
| LC490EQJ-SGK1 | LG Display | 49" | 3840×2160 |
| LC420EQJ-SGE2 | LG Display | 42" | 3840×2160 |
| LC650EQK-FGK5 | LG Display | 65" | 3840×2160 |
| CLAG080WQ05 AX | CPT | 8.0" | 800×1280 |
| TT070WSQ-N10 | BOE | 7.0" | 1024×600 |
| C097SNX1 R1 | IVO | 9.7" | 1024×768 |
| C097SNX1 R0 | IVO | 9.7" | 1024×768 |
| P062SWP1 R1 | IVO | 6.2" | 800×480 |
| P101NWT4 R0 | IVO | 10.1" | 1024×600 |
| HSD055FMW1-D00 | HannStar | 5.5" | 540×960 |
