商品の詳細:
|
| パネルの種類: | Si TFT-LCD | パネルのサイズ: | 8.4 インチ |
|---|---|---|---|
| 解決: | 800×600 | 表面に: | 防眩 |
| 輪郭: | 203×142.5 mm | 入力電圧: | 3.3V （Typ。） |
| ハイライト: | industrial touch screen display,industrial lcd screen |
||

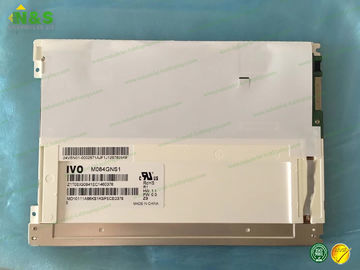

New and original 15.0 inch M084GNS1 R1 TFT LCD Module IVO Active Area 170.4×127.8 mm Contrast Ratio 600:1 (Typ.)
M084GNS1 R1 Basic Information
| Panel Model | M084GNS1 R1 |
| Panel Brand | IVO |
| Descrition | a-Si TFT-LCD ,8.4 inch, 800×600 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
M084GNS1 R1 Mechanical Features
| Dot Resolution | 800(RGB)×600 (SVGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 119 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.071×0.213 mm (H×V) |
| Pixel Pitch | 0.213×0.213 mm (H×V) |
| Weight | 200g (Typ.) |
| Surface | Antiglare |
| Active Area | 170.4×127.8 mm (H×V) |
| Bezel Area | 173.4×131.2 mm (H×V) |
| Outline Dimension | 203×142.5 mm (H×V) |
| Outline Depth | 5.7 (Typ.) mm |
| Holes & Brackets | Face mounting holes (4 pcs) on left, right bezel |
| Touch Panel | Without |
M084GNS1 R1 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 350 cd/m² (Typ.) |
| Contrast Ratio | 600 : 1 (Typ.) (Transmissive) |
| Display Color | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Color Gamut | 45% NTSC (CIE1931) |
| Response Time | 16 (Typ.)(Tr+Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 12 o'clock |
| White color Chromaticity | Wx:0.310; Wy:0.330 |
| White Variation | 1.33/1.43 (Typ./Max.)(9 points) |
| Sunlight Readable | N |
