商品の詳細:
|
| パネルの種類: | Si TFT-LCD | パネルのサイズ: | 10.1 インチ |
|---|---|---|---|
| 解決: | 1024×600 | コントラスト比: | 500:1 （Typ。） |
| 応答時間: | 3/5 （Typ。） （Tr/Td） | 周波数: | 60 hz |
| ハイライト: | industrial touch screen display,industrial lcd screen |
||

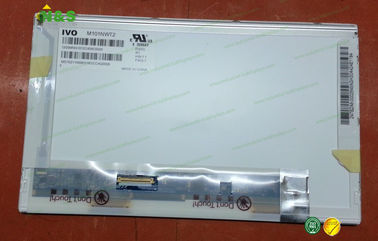

10.1 inch M101NWT2 R1 TFT LCD Module IVO with 222.72×125.28 mm Active Area Surface Glare (Haze 0%), Hard coating
What is our advantage?
Factory Experience: More than 6 years of experience in the agency & sourcing line of Hard-to-find LCD Screen replacements.
Delivery Quantity: 50-100 cartons shipped by DHL every week
Supply Ability: 100 pcs Panels per day.
Supply Area: All over the word (Most of North America, South America, Europe, Japan, Korea and more.)
Warranty: 12 months.
Our Service
• Long lasting product cycle for continuity thru all phases of project rollouts and servicing
• Competitive price for different brands hard disk.
• Mass stock with the better price.
• Multiple options.
• Warranty service.
• Better team to provide the before-sales, on-sale and after-sale service
• Pls send us message if any hard disk needed.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| C035SN72-0 | IVO | 3.5" | 320×480 |
| C045SWY1-C | IVO | 4.5" | 480×854 |
| C045SWY1-B | IVO | 4.5" | 480×854 |
| C050SWA5 R0 | IVO | 5.0" | 720×1280 |
| C050SWA4 R0 | IVO | 5.0" | 720×1280 |
| C024SN21-0 | IVO | 2.4" | 240×320 |
| C047SWA1-0 | IVO | 4.7" | 720×1280 |
| C101NWWB-0 | IVO | 10.1" | 1280×800 |
| C050SWY8-2 | IVO | 5.0" | 480×854 |
| C047SWY2-0 | IVO | 4.7" | 480×854 |
| C097SNX1 R1 | IVO | 9.7" | 1024×768 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
M101NWT2 R1 Basic Information
| Panel Model | M101NWT2 R1 |
| Panel Brand | IVO |
| Descrition | a-Si TFT-LCD ,10.1 inch, 1024×600 |
| Panel Type | a-Si TFT-LCD |
| Model Alias | M101NWT2-R1 |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
M101NWT2 R1 Mechanical Features
| Dot Resolution | 1024(RGB)×600 (WSVGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 117 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0725×0.2088 mm (H×V) |
| Pixel Pitch | 0.2175×0.2088 mm (H×V) |
| Weight | 190g (Max.) |
| Surface | Glare (Haze 0%), Hard coating |
| Active Area | 222.72×125.28 mm (H×V) |
| Bezel Area | 226.42×128.48 mm (H×V) |
| Outline Dimension | 235×143 mm (H×V) |
| Outline Depth | 5.2 (Max.) mm |
| Shape Style | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Holes & Brackets | Side mounting holes (4-M2) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
M101NWT2 R1 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 200 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Color Gamut | 45% NTSC (CIE1931) |
| Response Time | 3/5 (Typ.)(Tr/Td) |
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.25/1.60 (Max.)(5/13 points) |
| Sunlight Readable | N |
