商品の詳細:
|
| パネルの種類: | Si TFT-LCD | パネルのサイズ: | 8.0 インチ |
|---|---|---|---|
| 解決: | 800×600 | 表面に: | 防眩 |
| コントラスト比: | 400:1 （Typ。） | 入力電圧: | 3.3V （Typ。） |
| ハイライト: | industrial lcd screen,industrial lcd panel |
||

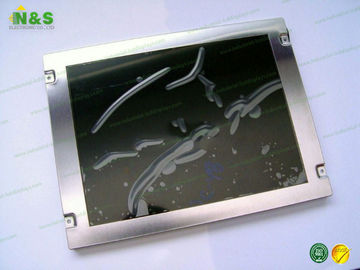

PD080SL1 8.0 inch resolution 800×600 Outline 200×152×10.8 mm Contrast Ratio 400:1 (Typ.) Input Voltage 3.3V (Typ.)
Our Promise for our LCD Panels:
You will get reply within 24 Hours and:
Year warranty
Day shipping
Return
PD080SL1 Basic Information
| Panel Model | PD080SL1 |
| Panel Brand | PVI |
| Descrition | a-Si TFT-LCD ,8.0 inch, 800×600 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -25 ~ 80 °C |
| Storage Temperature | -25 ~ 80 °C |
PD080SL1 Mechanical Features
| Dot Resolution | 800(RGB)×600 (SVGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 125 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0675×0.2025 mm (H×V) |
| Pixel Pitch | 0.2025×0.2025 mm (H×V) |
| Weight | 343±10g |
| Surface | Antiglare |
| Active Area | 162×121.5 mm (H×V) |
| Bezel Area | 165.0×124.5 mm (H×V) |
| Outline Dimension | 200×152 mm (H×V) |
| Outline Depth | 9.0/10.8 (Typ./Max.) mm |
| Holes & Brackets | Face mounting holes (4-Ф2.8) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
PD080SL1 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 420 cd/m² (Typ.) |
| Contrast Ratio | 400 : 1 (Typ.) (Transmissive) |
| Display Color | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Response Time | 15/25 (Typ.)(Tr/Td) |
| Viewing Angle | 60/60/35/50 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.320; Wy:0.350 |
| White Variation | 1.25/1.33 (Typ./Max.)(9 points) |
| Sunlight Readable | N |
