Normally White LTM09C362F TFT LCD Module Toshiba 8.9 inch 1024×600 Display Colors 262K (6-bit) new and original in stock

Normally White LTM09C362F TFT LCD Module Toshiba 8.9 inch 1024×600 Display Colors 262K (6-bit) new and original in stock
Normally White LTM09C362F TFT LCD Module Toshiba 8.9 inch 1024×600 Display Colors 262K (6-bit) new and original in stock

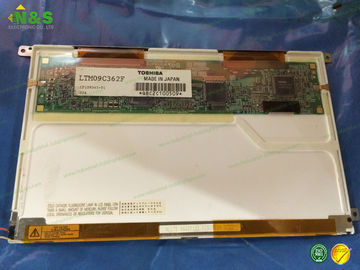

大画像 :  Normally White LTM09C362F TFT LCD Module Toshiba 8.9 inch 1024×600 Display Colors 262K (6-bit) new and original in stock

商品の詳細:
起源の場所: 韓国
ブランド名: Toshiba
証明: ISO9001
モデル番号: LTM09C362F
お支払配送条件:
最小注文数量: 1
パッケージの詳細: 帯電防止袋、プラスチック・バッグ、泡箱およびカートン箱。
受渡し時間: 1〜3営業日
支払条件: ウェスタン・ユニオン、T/T、MoneyGram、T/T
供給の能力: 500pcs/day

Normally White LTM09C362F TFT LCD Module Toshiba 8.9 inch 1024×600 Display Colors 262K (6-bit) new and original in stock

説明
パネルの種類: LTPS TFT-LCD パネルのサイズ: 8.9 インチ
解決: 1024×600 作用面積: 195.072×113.4 mm
表示色: 262K (6 ビット) ランプタイプ: 1 PC CCFL
ハイライト:

industrial lcd screen

,

industrial lcd panel

Normally White LTM09C362F TFT LCD Module Toshiba 8.9 inch 1024×600 Display Colors 262K (6-bit) new and original in stock



LTM09C362F Basic Information

Panel Model LTM09C362F
Panel Brand Toshiba Matsushita
Descrition LTPS TFT-LCD ,8.9 inch, 1024×600
Panel Type LTPS TFT-LCD
Operating Temperature 0 ~ 50 °C
Storage Temperature -20 ~ 60 °C



LTM09C362F Mechanical Features

Dot Resolution 1024(RGB)×600 (WSVGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 133 PPI
Aspect Ratio 17:10 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.0635×0.1890 mm (H×V)
Pixel Pitch 0.1905×0.1890 mm (H×V)
Active Area 195.072×113.4 mm (H×V)
Holes & Brackets Face mounting holes (3-Φ2.8) on left and right brackets
Landscape or Portrait Landscape type



LTM09C362F Optical Features

Display Mode TN, Normally White, Transmissive
Display Color 262K (6-bit)
Sunlight Readable N



FAQ

1.Payment
What are the terms of payments you offer?
Payment of the goods should be sent in USD or RMB on the basis of goods Values. We accept payment of T/T, Western Union, Money Gram, PayPal and cash only
2.Shipment
How long will it take to deliver goods?
We will deliver the goods within 3-5 days for spare parts, other goods maybe take a little more times to test and prepare, we will deliver the goods within the deadline which both parties agreed.
What kind of packaging you offer?
We will pack the goods well with exporting packages to make sure all goods in a good condition during storage and delivery.
What kind of transportation methods you offer?
A.We always use express delivery like DHL, UPS, FedEx, TNT and EMS, as we enjoy perfect discount in these companies. But if buyers provide us accounts of their own, transportation fee paid by such accounts are also welcomed.
B.We also always transport by air and sea for the goods with large quantity, and we will confirm freight with buyers' prior delivery.
How about the insurance during transportation? How to deal with the responsibility?
Buyers should take the full responsibility for shortage of goods if the goods are checked by any custom during transportation. During transportation, if goods are missed because of having been detained by custom in China, all loss thus occurred should be borne by us; if missing or detained of goods are occurred in other country except China, all loss should be borne by buyers
What Locations can you ship to?
We can send the goods to the whole world if the express way can deliver it.
3.Goods Return
What conditions should be considered to return goods?
A.Goods were delivered by SR
B.Goods are within our warranty policy
How long will you take to deal with the returned goods?
We will provide the first feedback within 5 working days.
4.Others
What kind of problem will happen usually?
Some goods will be out of stock and cannot offer, because it cannot meet the quality request or really out of stock. Anyway we will contact the client to confirm well before shipping.



Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
NP055IA-03E Innolux 5.5" 1080×1920
CLAG045LA011 AXA CPT 4.5" 480×854
LC550EGY-SHM1 LG Display 55" 3840×2160
LC550EQK-FGK3 LG Display 55" 3840×2160
H466TAN01.2 AUO 4.7" 720×1280
C050SWZ3-1 IVO 5.0" 540×960
C017SN81-0 IVO 1.8" 128×160
N080ICE-GB1 CELL Innolux 8.0" 800×1280
CLAF055LA41 TXX CPT 5.5" 540×960
V650DJ4-QS5 Innolux 65" 3840×2160
