商品の詳細:
|
| パネルの種類: | CSTN-LCD | パネルのサイズ: | 10.4 インチ |
|---|---|---|---|
| 解決: | 640×480 | 表面に: | 防眩 |
| コントラスト比: | 25:1 （Typ。） | 表示色: | 色 |
| ハイライト: | industrial touch screen display,industrial lcd screen |
||

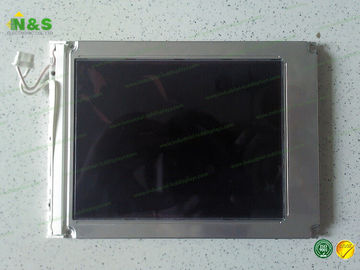

KCS6448JSTT-X6 10.4 inch Normally Black 640×480 TFT LCD MODULEOutline 242.5×179×7.5 mm Surface Antiglare
KCS6448JSTT-X6 Basic Information
| Panel Model | KCS6448JSTT-X6 |
| Panel Brand | Kyocera |
| Descrition | CSTN-LCD ,10.4 inch, 640×480 |
| Panel Type | CSTN-LCD |
| Operating Temperature | 0 ~ 40 °C |
| Storage Temperature | -20 ~ 60 °C |
KCS6448JSTT-X6 Mechanical Features
| Dot Resolution | 640(RGB)×480 (VGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 76 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.110×0.330 mm (H×V) |
| Pixel Pitch | 0.330×0.330 mm (H×V) |
| Weight | 400g (Typ.) |
| Surface | Antiglare |
| Active Area | 211.18×158.38 mm (H×V) |
| Bezel Area | 216.2×163.4 mm (H×V) |
| Outline Dimension | 242.5×179 mm (H×V) |
| Outline Depth | 7.0±0.5 mm |
| Holes & Brackets | Face mounting holes (4-Φ3.4) |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
KCS6448JSTT-X6 Optical Features
| Display Mode | STN, Normally Black, Transmissive |
| Brightness | 100 cd/m² (Typ.) |
| Contrast Ratio | 25 : 1 (Typ.) (Transmissive) |
| Display Color | Color () |
| Response Time | 160/80 (Typ.)(Tr/Td) |
| Viewing Angle | 50/50/30/30 (Typ.)(CR≥2) (L/R/U/D) |
| White color Chromaticity | Wx:0.300; Wy:0.330 |
| Sunlight Readable | N |
Packaging & Delivery
Packaging Details:
Antistatic bag + Bubble bag + Foam box + Carton box
Delivery Detail:
1-3 working days after payment confirmed
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| F-55472GNFQJ-LW-ABN | Kyocera | 2.8" | 128×64 |
| F-55472GNFQJ-LG-ADN | Kyocera | 2.8" | 128×64 |
| F-55472GNFQJ-LB-AEN | Kyocera | 2.8" | 128×64 |
| F-55472GNFJ-SLW-AHN | Kyocera | 2.8" | 128×64 |
| F-55472GNFJ-SLW-AFN | Kyocera | 2.8" | 128×64 |
| F-55472GNFJ-SLW-AAN | Kyocera | 2.8" | 128×64 |
| F-55472GNBJ-LW-AIN | Kyocera | 2.8" | 128×64 |
| F-55472GNBJ-LW-AGN | Kyocera | 2.8" | 128×64 |
| F-55472GNBJ-LW-ACN | Kyocera | 2.8" | 128×64 |
| F-55471GNFJ-SLW-AMN | Kyocera | 5.2" | 240×64 |
