商品の詳細:
|
| 解決: | 640×480 | パネルのサイズ: | 10.4 インチ |
|---|---|---|---|
| 作用面積: | 211.1×158.3 mm | 輪郭: | 263×205 mm |
| コントラスト比: | 10:1 （Typ。） | 表示色: | 8 （3ビット） |
| ハイライト: | industrial touch screen display,industrial lcd panel |
||

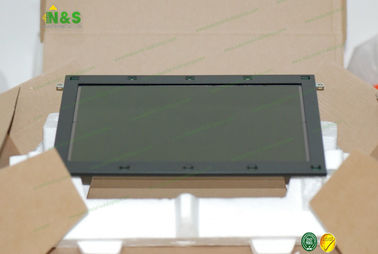

EL640.480-AA1 Lumineq 10.4 inch resolution 640×480 Active Area 211.1×158.3 mm Display Colors 8 (3-bit)
EL640.480-AA1 Basic Information
| Panel Model | EL640.480-AA1 |
| Panel Brand | Lumineq |
| Descrition | EL ,10.4 inch, 640×480 |
| Panel Type | EL |
| Model Alias | 996-5088-00 |
| Operating Temperature | -25 ~ 65 °C |
| Storage Temperature | -40 ~ 85 °C |
| Panel Model | Brand | Size | Resolution |
| BV015Z2E-NB0 | BOE | 1.54" | 320×320 |
| BV015Z1E-NB0 | BOE | 1.54" | 240×240 |
| C024SN21-0 | IVO | 2.4" | 240×320 |
| BP070WS1-600 | BOE | 7.0" | 1024×600 |
| CLAP070LF0BCW | CPT | 7.0" | 800×480 |
| H499TAN03.3 | AUO | 5.0" | 720×1280 |
| V750DK1-QS3 | Innolux | 75" | 3840×2160 |
| HV480WU2-302 | BOE | 48" | 1920×1080 |
| HV480WU2-301 | BOE | 48" | 1920×1080 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
EL640.480-AA1 Mechanical Features
| Dot Resolution | 640(RG)×480 (VGA) |
| Pixel Configuration | RG Vertical Stripe |
| Pixel Density | 77 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.165×0.330 mm (H×V) |
| Pixel Pitch | 0.330×0.330 mm (H×V) |
| Weight | 800g |
| Active Area | 211.1×158.3 mm (H×V) |
| Outline Dimension | 263×205 mm (H×V) |
| Holes & Brackets | Face mounting holes (4 pcs) on left and right slugs |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
EL640.480-AA1 Optical Features
| Brightness | 20 cd/m² (Typ.) |
| Contrast Ratio | 10 : 1 (Typ.) (Transmissive) |
| Display Color | 8 (3-bit) |
| Response Time | 1 (Max.) |
| Viewing Angle | 70/70/70/70 (Typ.) (L/R/U/D) |
| Viewing Direction | Symmetry |
| Sunlight Readable | N |
