商品の詳細:
|
| パネルの種類: | Si TFT-LCD | 作用面積: | 304.1×228.1 mm |
|---|---|---|---|
| パネルのサイズ: | 15.0 インチ | 解決: | 1024×768 |
| 表面に: | 防眩 | コントラスト比: | 500:1 （Typ。） |
| 周波数: | 60 hz | ||
| ハイライト: | industrial touch screen display,industrial lcd panel |
||

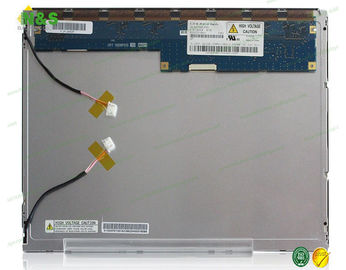

CLAA150XP01 Normally White 15.0 inch Outline 326.5×253.5×11.5 mm Contrast Ratio 500:1 (Typ.) Frequency 60Hz
Why do you choose us?
• Quick response to clients' enquiries within 24hrs.
• More than 6-yearexperience in LCD screen field and professional team communication team.
•Value quality and long-term cooperation to reach win-win relationship.
Packing & Delivery for our LCD Screen Panel Replacements:
1. Anti-static Bag Packing.
2. Anti-Shock Bubble Bag Packing
3. Foam and Hard Carton Packing
4. Picked up by forward and delivered by express services.
CLAA150XP01 Basic Information
| Panel Model | CLAA150XP01 |
| Panel Brand | CPT |
| Descrition | a-Si TFT-LCD ,15.0 inch, 1024×768 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
| Remarks | Optical Compensation Film |
CLAA150XP01 Mechanical Features
| Dot Resolution | 1024(RGB)×768 (XGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 85 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.099×0.297 mm (H×V) |
| Pixel Pitch | 0.297×0.297 mm (H×V) |
| Weight | 1.06Kgs (Typ.) |
| Surface | Antiglare |
| Active Area | 304.1×228.1 mm (H×V) |
| Bezel Area | 307.4×231.3 mm (H×V) |
| Outline Dimension | 326.5×253.5 mm (H×V) |
| Outline Depth | 11.0±0.5 mm |
| Holes & Brackets | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
CLAA150XP01 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 250 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
| Display Color | 16.2M (6-bit + FRC) |
| Color Gamut | 65% NTSC (CIE1931) |
| Response Time | 5/11 (Typ.)(Tr/Td) |
| Viewing Angle | 70/70/60/65 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.25/1.33 (Typ./Max.)(9 points) |
| Sunlight Readable | N |
