商品の詳細:
|
| パネルのサイズ: | 5.7 インチ | 解決: | 320×240 |
|---|---|---|---|
| パネルの種類: | STN-LCD | 作用面積: | 115.18×86.38 mm |
| 輪郭: | 144×104.8×13.2 mm | 表面に: | まぶしさ（霞 0%） |
| 周波数: | 75HZ | ||
| ハイライト: | industrial lcd screen,industrial lcd panel |
||

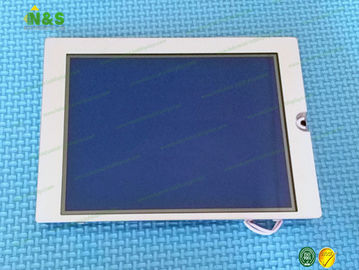

KG057QV1CA-G020W 5.7 inch resolution 320×240 Active Area 115.18×86.38 mm Surface Glare (Haze 0%)
KG057QV1CA-G020W Basic Information
| Panel Model | KG057QV1CA-G020W |
| Panel Brand | Kyocera |
| Descrition | STN-LCD ,5.7 inch, 320×240 |
| Panel Type | STN-LCD |
KG057QV1CA-G020W Mechanical Features
| Dot Resolution | 320×240 (QVGA) |
| Pixel Configuration | Rectangle |
| Pixel Density | 70 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.360×0.360 mm (H×V) |
| Pixel Pitch | 0.360×0.360 mm (H×V) |
| Weight | 175g |
| Surface | Glare (Haze 0%) |
| Active Area | 115.18×86.38 mm (H×V) |
| Bezel Area | 119.4×90.6 mm (H×V) |
| Outline Dimension | 144×104.8 mm (H×V) |
| Outline Depth | 9.0/13.2 (Typ./Max.) mm |
| Holes & Brackets | Rear mounting poles (4-Φ2.6) |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
KG057QV1CA-G020W Optical Features
| Display Mode | STN, Blue mode (Negative), Transmissive |
| Brightness | 260 cd/m² (Typ.) |
| Contrast Ratio | 4 : 1 (Typ.) (Transmissive) |
| Display Color | Monochrome () |
| Response Time | 380/120 (Typ.)(Tr/Td) |
| Viewing Angle | 45/45/20/40 (Typ.)(CR≥2) (L/R/U/D) |
| White color Chromaticity | Wx:0.310; Wy:0.330 |
| Sunlight Readable | N |
BOE BP080WX7-100 Optical Features
Display Mode : HFFS, Normally Black, Transmissive
Brightness : 0 cd/m²
Contrast Ratio : 900 : 1 (Typ.) (Transmissive)
Display Color : 16.7M (6-bit + Hi-FRC)
Color Gamut : 55% NTSC (CIE1931)
Response Time : 24 (Typ.)(Tr+Td)
Viewing Angle : 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : Symmetry
White color Chromaticity : Wx:0.301; Wy:0.321
