商品の詳細:
|
| パネルのサイズ: | 15.6 インチ | 解決: | 1366×768 |
|---|---|---|---|
| コントラスト比: | 500:1 （Typ。） | 周波数: | 60 hz |
| 入力電圧: | 3.3V （Typ。） | 表面に: | まぶしさ（霞 0%） |
| ハイライト: | industrial touch screen display,industrial lcd panel |
||

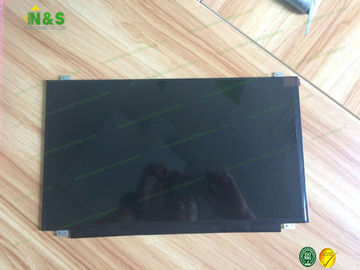

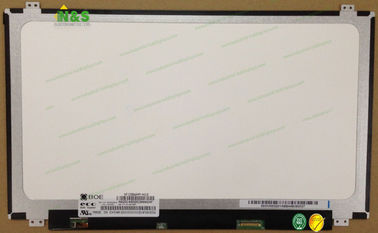

NT156WHM-N12 15.6 inch 1366×768 Surface Glare (Haze 0%) Response Time 12 (Typ.)(Tr+Td) Input Voltage 3.3V (Typ.)
Our Advantages
Our service
1. Agent Brand:
* Our sourcing line contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more bands tft lcd moulds from 2010, you can get the most competitive price for real products;
2. Quality to be guaranteed:
* All the panels are 100% original and brand new, no fake panels exists.Take the lcd screen from us, you can enjoy the real panels directly from original factory;
* Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the LCD panels packages have labels and serial number, you can check them;
3. Quickly delivery:
* We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly.
4. long-term partner:
* Products are sold to more than 20 countries.
5. Super After-Sale service:
* One year warranty .
6. The best TFT LCD solution:
*more tft lcd model detail information for the LCD screens including size, resolution, brightness, operating temperature or life time etc in our web site.
To get the latest prices, pls feel free to contact us.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| BA050WQ2-200 | BOE | 5.0" | 480×272 |
| HV490QU2-305 | BOE | 49" | 3840×2160 |
| BA070WV2-300 | BOE | 7.0" | 800×480 |
| BP070WX2-100 | BOE | 7.0" | 800×1280 |
| HV550WU2-200 | BOE | 55" | 1920×1080 |
| BD039WVQ-110 | BOE | 4.0" | 480×800 |
| BP101WX4-206 | BOE | 10.1" | 1280×800 |
| HV550QU2-301 | BOE | 55" | 3840×2160 |
| BA070WV4-300 | BOE | 7.0" | 800×480 |
| BF047WVG-100 | BOE | 4.7" | 480×800 |
| BF055QHQ-100 | BOE | 5.5" | 540×960 |
Pls contact to us for more stock information: salespm@nselectronic.com.hk
NT156WHM-N12 Basic Information
| Panel Model | NT156WHM-N12 |
| Panel Brand | BOE |
| Descrition | a-Si TFT-LCD ,15.6 inch, 1366×768 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
| Remarks | eDP1.2 |
NT156WHM-N12 Mechanical Features
| Dot Resolution | 1366(RGB)×768 (WXGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 100 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.084×0.252 mm (H×V) |
| Pixel Pitch | 0.252×0.252 mm (H×V) |
| Weight | 400g (Max.) |
| Surface | Glare (Haze 0%) |
| Active Area | 344.232×193.536 mm (H×V) |
| Outline Dimension | 359.5×223.8 mm (H×V) |
| Outline Depth | 3.8 (Max.) mm |
| Shape Style | Flat (PCBA Flat, Depth 3.4~4.0mm) |
| Holes & Brackets | Face mounting holes (8 pcs) on up, down slugs |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
NT156WHM-N12 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 200 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Color Gamut | 45% NTSC (CIE1931) |
| Response Time | 12 (Typ.)(Tr+Td) |
| Viewing Angle | 45/45/20/40 (Typ.)(CR≥10) (L/R/U/D) |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.25/1.54 (Max.)(5/13 points) |
| Sunlight Readable | N |
